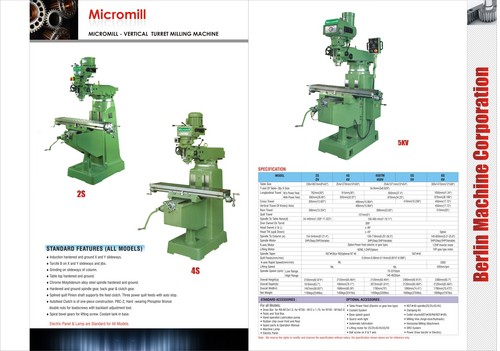

Mirco Mill Turret Milling Machine

Mirco Mill Turret Milling Machine
Mirco Mill Turret Milling Machine
Product Code : 16
Product Description

Item Code: S4S-4V

We have in offer for our clients Micromill Milling Machines, 4S/4V, which are provided at economical prices. These are acclaimed for giving precise results and find wide applications in heavy duty and massive operations. Owing to the features like compact design and less maintenance, these are in high demands by our widespread clients.



Specification

4S/4V

Table Size 254X1371 mm
T slot of table mm 3X15.87

Longitudinal Travel (X axis)

Manual 905mm



Auto 825 mm
Cross travel (Y axis) 406mm

Vertical Travel of knee( Z axis)

406mm
Ram Travel 560mm
Quill travel 127mm
Spindle dia 85.725 mm
Spindle to table nose 40-430mm
Over swivel on turret 360o
Mead swivel (R&L) +90;'

Head till (up & down)

+45o
Spindle to column 159-697mm
Spindle motor 3HP
X axis motor

Power feed with electric or gear type (Option)

Spindle taper

NST#30 or R8 ( NST#40 option)

Quill feeds( mm/rpm) 0.4-0.8-0.14
Spindle speed( rpm) 5-3800 16 SPEED/VARIABLE
Overall height 2120mm
Overall depth 2073mm
Overall width 1680mm
Net weight 1400kg
