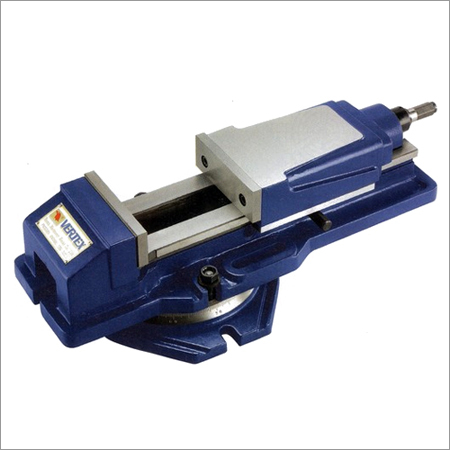

Hydraulic Vise

Hydraulic Vise
Hydraulic Vise
Product Code : 07
Product Description

Being a reputed organization, we bring forth an all-encompassing array of Hydraulic Vise. The offered product comes with an adjustable pressure device that is ideal for processing of brass, steel and aluminium. Rigid construction makes this hydraulic vise highly demanded for shaping, drilling, milling and grinding jobs. It is fabricated with the utilization of qualitative components and highly progressive techniques. Moreover, our prestigious clients greatly trust the provided range of Hydraulic Vise for its associated attributes like rugged construction and low maintenance.

Features:

  • Concealed spindle for protection against chips and dirt

  • Sliding bed ways flame hardened and ground

  • Hydraulic-booster system is guaranteed for using 1 years limited

  • The hydraulic oil number is #68

  • Hydraulic-booster system for maximizing clamping pressure with minimum force

  • Easily operable

  • Accuracy within 0.02mm

  • Furnished with or without swivel base

Order No. and Dimensions:

Order No. A B C Open A D E F G H Max. Clamp Force G.W. (kg.) Meas CFT Code No.
VH-4 105 36 170 525 440 170 95 58 95 3750kgs (C)27.2 0.8 1002-001
VH-5 130 48 210 670 550 207 120 70.5 107 4500kgs (C)47.4 1.5 1002-002
VH-6 150 53 300 800 620 225 135 82.5 117 5250kgs (C)63 2.2 1002-003
VH-8 200 62 300 900 680 280 162 100 150 6000kgs (W)106.6 3.6 1002-004
VH-8L 200 62 400 900 780 280 162 100 150 6000kgs (W)123



1002-005
